Keypad does not show Alarm activated with red light

[PLampi 3]

Another issue. I use keypad to activate burglar alarm with this way:



eg. when keyboard activates, it will tell 6.2.01.b that activation is ok. And this works fine so alarm is activated and de-activated normally from keyboard BUT light is always GREEN. Red flashes onlu when press keys but no stay red on activated state (as it should)....what's wrong here...?



[Kandersen 129]

What keypad is it, LK´s ?

[PLampi 3]

https://www.greenline.dk/elartikler/tavlemateriel/lk-ihc/ihc-control-alarm-kodetastatur

[Kandersen 129]

Thats the original LK keypad.

Make sure the wires are connected correct according to the scheme which is included when you bought the keypad.

If they are connected corectly then I would assume the led is defect or maybe a output.

[PLampi 3]

Yes, that what confuses me. I have had this installed and worked with Visual Controller 1 and changed that to Visual Controller 3. All cabling and programming (that is same..as all needed to reprogrammed) is as before. And as said, keypad works and alarm activate/deactivate from keyboard. When press keys, red light flashes but as activation is done working, light on keyboard is green :( Do not know what actually controls that light color.

[Kandersen 129]

9 minutter siden, PLampi skrev:

Yes, that what confuses me. I have had this installed and worked with Visual Controller 1 and changed that to Visual Controller 3. All cabling and programming (that is same..as all needed to reprogrammed) is as before. And as said, keypad works and alarm activate/deactivate from keyboard. When press keys, red light flashes but as activation is done working, light on keyboard is green Do not know what actually controls that light color.

Not exactly unfortunatly. It should be part of the Pin 7 (Signal in) from the output module. I have no idea how come it shouldnt work after you changed controller.
Maybe @Henning Pedersen or someone else has a better/deeper knowlegde of the keypad and how it works.
I wonder if there is some changes in the alarm function block.. If you look into Service View, your should be able to detamin if the keypar (alarm) is ready or not, when the alarm is armed. In my installation, when I arm the Alarm, the keypad turns into red light, and the output of "alarm status" is changed from ON to OFF.

This is how it looks like in my openHAB setup, which basicly just read the status of the Alarm functionblock. Notice the first two at top. The Alarm is armed, and status goes OFF. To the right (still at top), you can see the total alarm is armed (ON).

[PLampi 3]

Yes, this status change happens but light do not change. But will start to deepdive this again when back to my holiday home next time where this setup is installed. Keep you posted

[Henning Pedersen 164]

Try disconnecting the white wire on the output module. Now the diode should turn red. If not, then you have a faulty installation.

[PLampi 3]

Great, will test this option! Installation as such (HW) cannot be wrong as none has changed, then issue must in my SW config...

[Henning Pedersen 164]

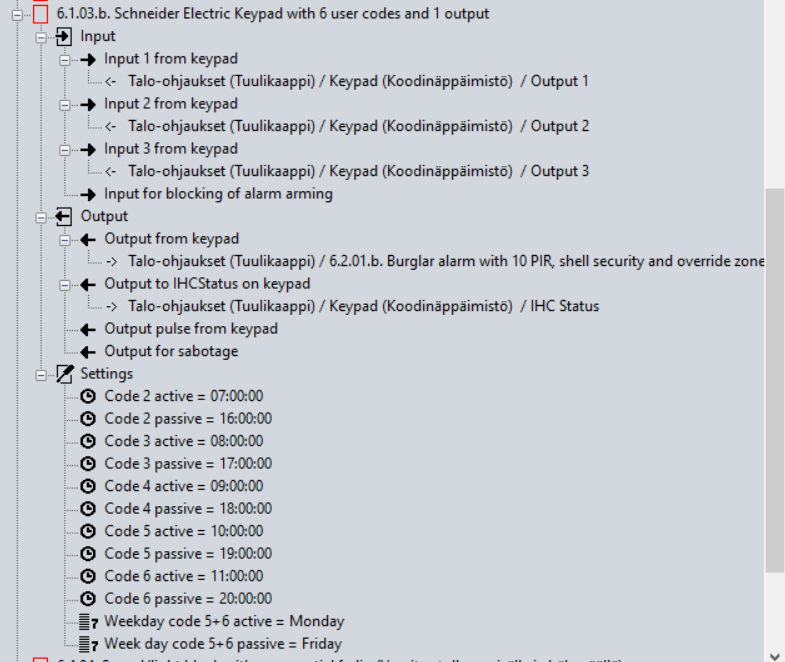

After a close reading of your picture, I can see that you are using both 6.1.03 and 6.2.01, it is not good. You only need 6.2.01

[PLampi 3]

You are right. As keypad did not work properly with 6.2.01 so tested using 6.1.03 to handle keyboard only. Works ok but as this led issue was not corrected via this, will switch back to 6.2.01 only.

[PLampi 3]

OK, now fixed. Henning pointed out good testing using white cable loose to see, if this is working. And yes, it worked. For some odd reason original output port did not work (kept ON all time even forced OFF) and changed to another output port. Now it works.
